R-1W SF

R-1W SF

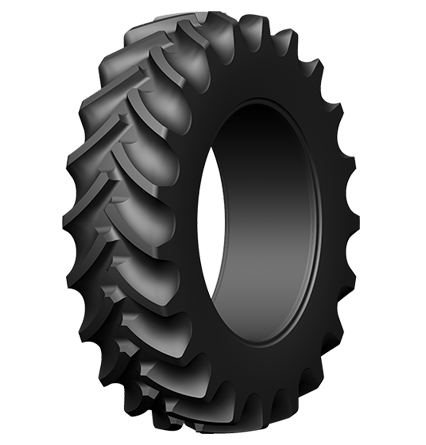

The R-1W has been specially developed for agricultural use. This Advance tyre features wide tread pattern which helps to significantly reduce surface pressure and protect plant roots.

The deep tread pattern provides powerful traction and the new tread compound helps in extending the life of the tyre.
DOWNLOAD DATA SHEET
General comment on the specified technical data

Technical data on this website are based on manufacturer data or the ETRTO standard and are for informational purposes only.

We accept no liability for errors, omissions or incorrect information on this website. All information can be changed at any time without prior notice.

Manufacturer and ETRTO specifications are final.

Do you have questions about our tyres? Please feel free to contact us at any time - we will take care of your request as soon as possible!

TECHNICAL SPECIFICATIONS

METRIC SIZE INCH SIZE LI SI TYPE REC RIM OD (MM) SW (MM) STATIC LOADED RADIUS (MM) ROLLING CIRCUMFERENCE (MM) INFLATION PRESSURE (KPA) R106
320/70R20 113 D TL 10 982 319 445 2877 160
360/70R20 129 D TL 11 1042 357 492 3110 240
380/70R20 132 D TL 12.00 1082 380 490 3196 240
280/85R20 11.2R20 112 A8/B TL 9.00 984 282 452 2930 160
440/65R24 135 D TL 14.00 1182 441 535 3560 160 E8*106R00/16*1914*00
540/65R24 146 D TL 18.00 1312 550 572 3839 240 E8*106R00/16*1859*00
320/70R24 116 D TL 10.00 1094 319 500 3216 160
360/70R24 127 D TL 11.00 1152 357 547 3445 240
380/70R24 125 D TL 12.00 1190 380 530 3442 160 E8*106R00/16*1911*00
420/70R24 130 D TL 13.00 1248 418 563 3715 160 E8*106R00/16*1852*00
420/70R24 136 D TL 13.00 1248 418 563 3715 240 E8*106R00/16*1853*00
280/85R24 11.2R24 115 A8/B TL 9.00 1086 282 552 3130 160
320/85R24 12.4R24 122 A8/B TL 10.00 1154 319 527 3440 160
340/85R24 13.6R24 125 A8/B TL 11.00 1188 343 530 3530 160 E8*106R00/16*1753*00
380/85R24 14.9R24 131 A8/B TL 12.00 1256 380 555 3700 160 E4*106R00/15*3752*00
420/85R24 16.9R24 137 A8/B TL 13.00 1324 418 622 3440 160
620/75R26 23.1R26 166 A8/B TL 20.00 1590 625 725 4670 320 E8*106R00/16*1897*00
14.9R26 132 A8/B TL 13.00 1316 378 600 3938 210
440/65R28 141 D TL 14.00 1283 441 588 3882 240 E8*106R00/16*1915*00
480/65R28 142 D TL 15.00 1335 479 611 4034 240
540/65R28 142 D TL 18.00 1413 550 626 4150 160 E8*106R00/16*1857*00
540/65R28 149 D TL 18.00 1413 550 626 4150 240
600/65R28 147 D TL 18.00 1491 591 666 4420 160 E8*106R00/16*1887*00
600/65R28 154 D TL 18.00 1491 591 666 4420 240 E8*106R00/16*1746*00
320/70R28 119 D TL 10.00 1189 319 547 3504 160
360/70R28 130 D TL 11.00 1251 351 599 3754 240
380/70R28 127 D TL 12.00 1293 380 588 3866 160
380/70R28 133 D TL 12.00 1293 380 588 3866 240
420/70R28 133 D TL 13.00 1349 418 607 4015 160
420/70R28 139 D TL 13.00 1349 418 607 4015 240
480/70R28 140 D TL 15.00 1421 479 650 4255 160 E8*106R00/16*1758*00
320/85R28 12.4R28 124 A8/B TL 10.00 1255 319 577 3714 160
340/85R28 13.6R28 127 A8/B TL 11.00 1293 343 580 3850 160 E8*106R00/16*1754*00
380/85R28 14.9R28 133 A8/B TL 12.00 1357 380 596 4005 160 E8*106R00/16*1755*00
420/85R28 16.9R28 139 A8/B TL 13.00 1425 418 635 4215 160 E4*106R00/15*3756*00
420/85R28 16.9R28 144 A8/B TL 13.00 1425 418 635 4215 240
540/65R30 143 D TL 18.00 1464 550 662 4300 160 E8*106R00/16*1886*00
540/65R30 150 D TL 18.00 1464 550 662 4300 240
480/70R30 141 D TL 15.00 1478 479 655 4390 160
380/85R30 14.9R30 135 A8/B TL 12.00 1408 380 635 4225 160
420/85R30 16.9R30 140 A8/B TL 13.00 1476 418 670 4400 160 E4*106R00/15*3757*00
460/85R30 18.4R30 145 A8/B TL 14.00 1544 455 685 4582 160 E8*106R00/16*1860*00
420/90R30 147 A8/B TL 13.00 1518 418 696 4563 240 E4*106R00/15*3760*00
14.9R30 129 A8/B TL 13.00 1400 378 626 4195 160
900/60R32 181 D TL 28.00 1893 896 858 5560 320 E8*106R00/16*1851*00
800/65R32 172 D TL 25.00 1853 798 837 5443 240
800/65R32 178 D TL 25.00 1853 798 837 5443 E8*106R00/16*1909*00
540/65R34 145 D TL 18.00 1566 550 714 4600 160
540/65R34 152 D TL 18.00 1566 550 714 4600 240
380/85R34 14.9R34 137 A8/B TL 12.00 1510 380 679 4501 160
380/85R34 14.9R34 142 A8/B TL 12.00 1510 380 679 4501 240 E8*106R00/16*1910*00
420/85R34 16.9R34 142 A8/B TL 13.00 1578 418 729 4741 160 E8*106R00/16*1752*00
420/85R34 16.9R34 147 A8/B TL 13.00 1578 418 712 4715 240 E8*106R00/16*1757*00
460/85R34 18.4R34 147 A8/B TL 14.00 1646 455 727 4847 160
540/65R38 153 D TL 18.00 1667 550 752 5003 240 E8*106R00/16*1916*00
600/65R38 159 D TL 18.00 1745 591 781 5212 240
650/65R38 157 D TL 20.00 1811 645 830 5319 160 E8*106R00/16*1898*00
650/65R38 163 D TL 20.00 1811 645 830 5319 240
580/70R38 155 D TL 18.00 1827 577 827 5366 160 E8*106R00/16*1908*00
580/70R38 160 D TL 18.00 1827 577 827 5366 240
620/70R38 170 D TL 20.00 1833 625 824 5464 320
710/70R38 166 D TL 23.00 1959 716 910 5871 160 E8*106R00/16*1745*00
710/70R38 171 D TL 23.00 1959 716 910 5871 240 E8*106R00/16*1764*00
710/70R38 178 D TL 23.00 1959 716 910 5871 340
480/80R38 151 A8/B TL 15.00 1733 479 806 5078 160
420/85R38 16.9R38 144 A8/B TL 13.00 1679 418 829 5055 160
460/85R38 18.4R38 149 A8/B TL 14.00 1747 455 793 5230 160 E8*106R00/16*1907*00
520/85R38 20.8R38 155 A8/B TL 16.00 1849 516 843 5500 160 E4*106R00/15*3758*00
520/85R38 20.8R38 169 A8/B TL 16.00 1849 516 843 5500 360 E8*106R00/16*1743*00
650/85R38 173 A8/B TL 20.00 2071 645 913 6144 240 E8*106R00/16*1756*00
650/85R38 173 D TL 20.00 2071 645 913 6144 240
15.5R38 134 A8/B TL 14.00 1569 394 729 4725 160
600/65R42 154 D TL 18.00 1847 591 843 5535 160 E8*106R00/16*1888*00
650/65R42 158 D TL 20.00 1913 645 876 5620 160 E8*106R00/16*1762*00
650/65R42 165 D TL 20.00 1913 645 876 5620 240 E8*106R00/16*1763*00
620/70R42 160 D TL 20.00 1935 625 900 4816 160 E8*106R00/16*1896*00
620/70R42 172 D TL 20.00 1935 625 900 4816 320 E8*106R00/16*1761*00
480/80R42 151 A8/B TL 15.00 1835 479 835 5540 160 E8*106R00/16*1861*00
520/85R42 20.8R42 157 A8/B TL 16.00 1951 516 884 5810 160 E4*106R00/15*3750*00
520/85R42 20.8R42 162 A8/B TL 16.00 1951 516 884 5810 240 E8*106R00/16*1744*00
18.4R42 148 A8/B TL 16.00 1850 467 853 5532 160
480/80R46 18.4R46 152 A8/B TL 15.00 1936 479 884 5686 160 E4*106R00/15*3755*00
480/80R46 18.4R46 158 A8/B TL 15.00 1936 479 884 5686 240 E8*106R00/16*1742*00
320/90R46 148 A8/B TL 10.00 1744 319 730 5246 360
380/90R46 149 A8/B TL 12.00 1852 380 890 5440 240 E4*106R00/15*3759*00
480/80R50 18.4R50 159 A8/B TL 15.00 2038 479 945 6210 240 E8*106R00/16*1912*00
320/90R50 150 A8/B TL 10.00 1846 319 854 5575 340
320/90R54 151 A8/B TL 10.00 1948 319 906 5913 340
